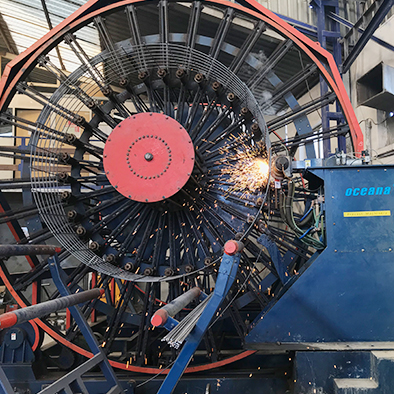

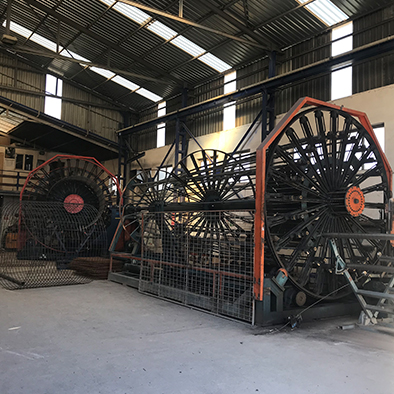

HGZ Automatic Cage welding machine


Working Principal:

HGZ series Wire Cage welding machine is one of the most necessary equipment to produce reinforced concrete pipes. There is pushing style, another is the Pulling. It makes up of four


systems:

The Main plate; Pushing Plate; Diameter changing; and Cooper welder, they are working, driven by the separate motor. The Variable Frequency Ratio speed control system will promise the spiral pitch, angel of bell joint at regulated. Capacity: 300-3600mm, length 1-4 meter.


Features:

1.      Automatic PLC control, Man-machine interface, Touch screen.

2.      Variable Frequency Speed control and inverter;

3.      Pneumatic clamping system, Gear wheel chain on the main plate;

4.      Transformer and electrode water cooling system.




Technical Details:

Items

HGZ300-1500

HGZ800-2400

HGZ1350-3000

Pipe   diameter

Φ300-1500

Φ300-1200

Φ800-2400

800-2000

Φ1350-3000

1350-2400

End   joint

Flush   joint

Bell   joint

Flush   joint

Bell   joint

Flush   joint

Bell   joint

Pipe   length

1-4   m

1-4m

1-4m

Longitudinal   Steel bar Dia.

Max.8mm

Max.10   mm

Max.   12mm

Winding   Steel bar Dia.

Max.8mm

Max.   10mm

Max.   12 mm

Number   of longitude bar

12   PCS

24   PCS

32   PCS

Winding   Pitch

20-150mm

20-200mm

20-200mm

Angle   of spigot

10°--25°

10°--25°

10°--25°

Rotation   speed of master plate

0-10   r/min

0-10   r/min

0-10   r/min

Power   of motor

0.55+0.75+1.1   +2.2 k w

1.1   +2.2+3+5 k w

1.5+2.2+3+7.5   k w

Power   Transformer of welder

100   K VA

150K   VA

200K   VA

Production   time per cage

3-5   mins

4-10min

6-12   min
